VUE3 ElementPlus Timeline 时间线

VUE3 ElementPlus Timeline 时间线

可视化地呈现时间流信息。

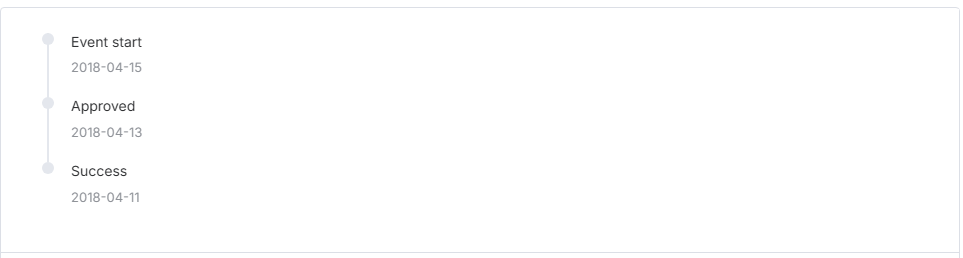

基础用法

Timeline 可拆分成多个按照时间戳排列的活动， 时间戳是其区分于其他控件的重要特征， 使用时注意与 Steps 步骤条等区分。

<template>
  <el-timeline style="max-width: 600px">
    <el-timeline-item
      v-for="(activity, index) in activities"
      :key="index"
      :timestamp="activity.timestamp"
    >
      {{ activity.content }}
    </el-timeline-item>
  </el-timeline>
</template>

<script lang="ts" setup>
const activities = [
  {
    content: 'Event start',
    timestamp: '2018-04-15',
  },
  {
    content: 'Approved',
    timestamp: '2018-04-13',
  },
  {
    content: 'Success',
    timestamp: '2018-04-11',
  },
]
</script>

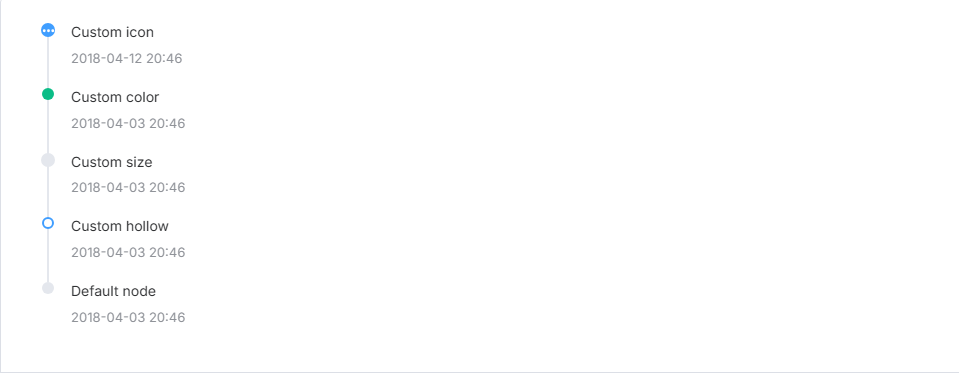

⾃定义节点样式

可根据实际场景⾃定义节点尺⼨、颜⾊，或直接使⽤图标。

<template>
  <el-timeline style="max-width: 600px">
    <el-timeline-item
      v-for="(activity, index) in activities"
      :key="index"
      :icon="activity.icon"
      :type="activity.type"
      :color="activity.color"
      :size="activity.size"
      :hollow="activity.hollow"
      :timestamp="activity.timestamp"
    >
      {{ activity.content }}
    </el-timeline-item>
  </el-timeline>
</template>

<script lang="ts" setup>
import { MoreFilled } from '@element-plus/icons-vue'
import type { TimelineItemProps } from 'element-plus'

interface ActivityType extends Partial<TimelineItemProps> {
  content: string
}

const activities: ActivityType[] = [
  {
    content: 'Custom icon',
    timestamp: '2018-04-12 20:46',
    size: 'large',
    type: 'primary',
    icon: MoreFilled,
  },
  {
    content: 'Custom color',
    timestamp: '2018-04-03 20:46',
    color: '#0bbd87',
  },
  {
    content: 'Custom size',
    timestamp: '2018-04-03 20:46',
    size: 'large',
  },
  {
    content: 'Custom hollow',
    timestamp: '2018-04-03 20:46',
    type: 'primary',
    hollow: true,
  },
  {
    content: 'Default node',
    timestamp: '2018-04-03 20:46',
  },
]
</script>

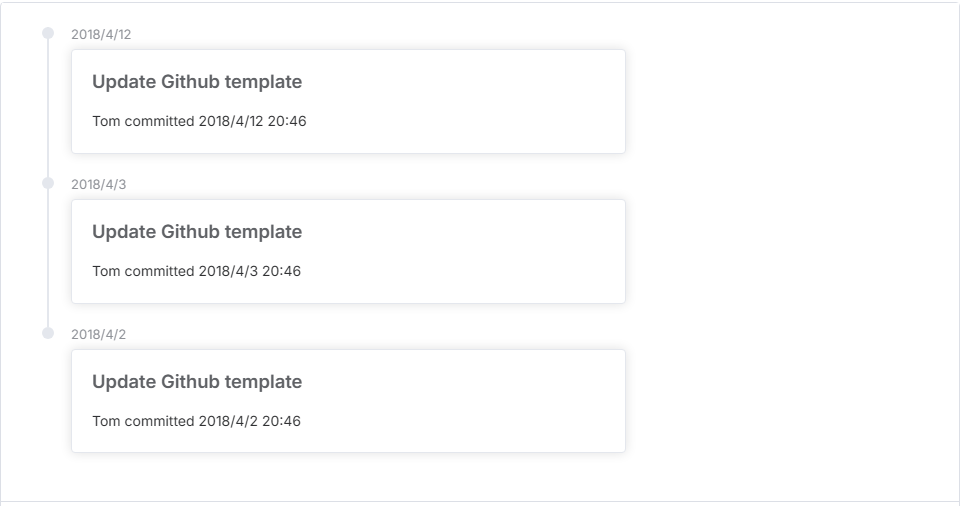

⾃定义时间戳​

当内容在垂直⽅向上过⾼时，可将时间戳置于内容之上。

<template>
  <el-timeline style="max-width: 600px">
    <el-timeline-item timestamp="2018/4/12" placement="top">
      <el-card>
        <h4>Update Github template</h4>
        <p>Tom committed 2018/4/12 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/3" placement="top">
      <el-card>
        <h4>Update Github template</h4>
        <p>Tom committed 2018/4/3 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/2" placement="top">
      <el-card>
        <h4>Update Github template</h4>
        <p>Tom committed 2018/4/2 20:46</p>
      </el-card>
    </el-timeline-item>
  </el-timeline>
</template>

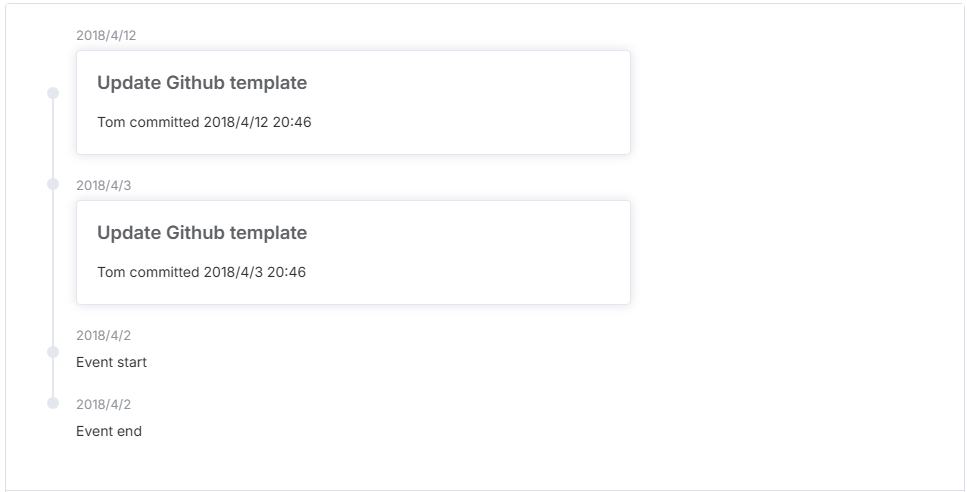

垂直居中​

垂直居中样式的 Timeline-Item

<template>
  <el-timeline style="max-width: 600px">
    <el-timeline-item center timestamp="2018/4/12" placement="top">
      <el-card>
        <h4>Update Github template</h4>
        <p>Tom committed 2018/4/12 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/3" placement="top">
      <el-card>
        <h4>Update Github template</h4>
        <p>Tom committed 2018/4/3 20:46</p>
      </el-card>
    </el-timeline-item>
    <el-timeline-item center timestamp="2018/4/2" placement="top">
      Event start
    </el-timeline-item>
    <el-timeline-item timestamp="2018/4/2" placement="top">
      Event end
    </el-timeline-item>
  </el-timeline>
</template>

Timeline API​

Timeline Slots​

插槽名说明子标签
defaulttimeline 组件的自定义默认内容Timeline-Item

Timeline的API​

属性名说明类型默认值
timestamp时间戳string''
hide-timestamp是否隐藏时间戳booleanfalse
center是否垂直居中booleanfalse
placement时间戳位置enumbottom
type节点类型enum''
color节点颜色enum''
size节点尺寸enumnormal
icon自定义图标string / Component—
hollow是否空心点booleanfalse

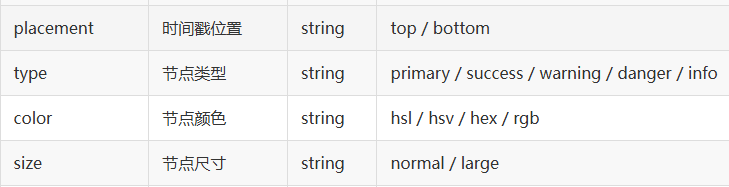

其中enum具体参数如下：

Timeline的插槽​

插槽名说明
defaultcustomize default content for timeline item
dotcustomize defined node for timeline item
